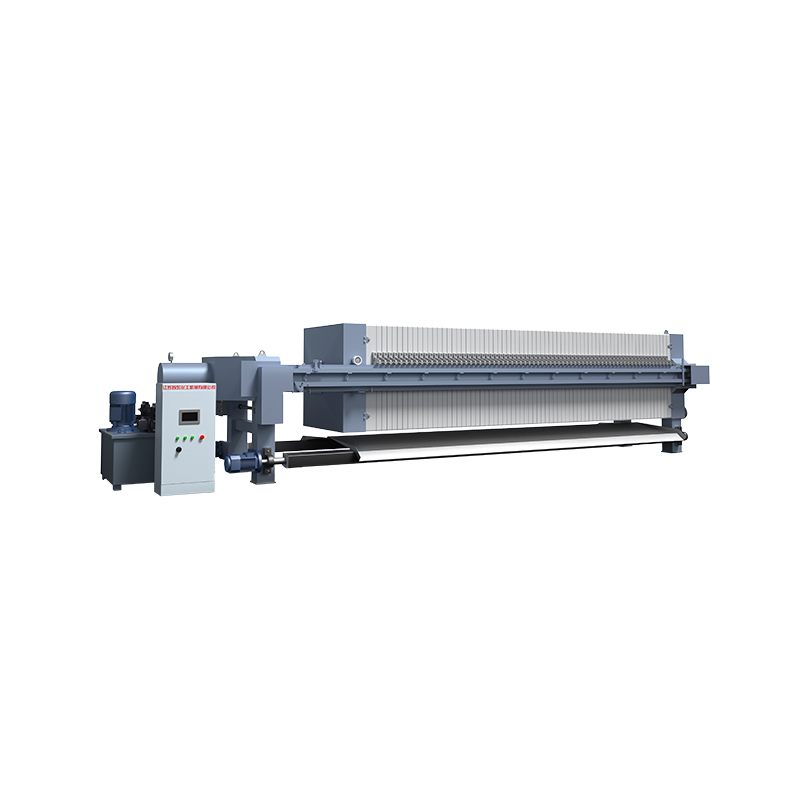

Automatic Filter press with cloths discharge

Application range: The products are widely used in solid-liquid separation in petrochemical, non-ferrous metallurgy, fine chemicals, and other industries.
Product features: The machine can be equipped with various configurations such as automatic plate pulling, automatic liquid connection, varicosity unloading, automatic filter cloth washing, PLC automatic control, etc. The operation panel is simple and safe, and the degree of automation is high.
Product advantages: The filter cloth varicosity system can change the inclination angle of the filter cloth when the filter press is unloading, forming an inverted "V" shape, and at the same time, the spring on the filter cloth will vibrate due to expansion and contraction so that the filter cake will fall off automatically. The automatic vibration device adopts pneumatic control. During the automatic plate pulling and unloading process of the filter press, the handle on one side of the filter plate is automatically vibrated, so that the filter plate vibrates up and down, and the filter cake is forced to fall off automatically. The varicosity mechanism assists the cake unloading device, which greatly improves the cake removal rate for high-viscosity and high-density filter cakes. The overall frame is made of high-strength steel welded parts, with high frame strength, stable structure, and long service life.

Contact Us Jiangsu Sudong Chemical Machinery Co., Ltd.
PREV: Composite rubber plate diaphragm filter press
NEXT:Automatic Efficient Water Washing Filter Press

Product details

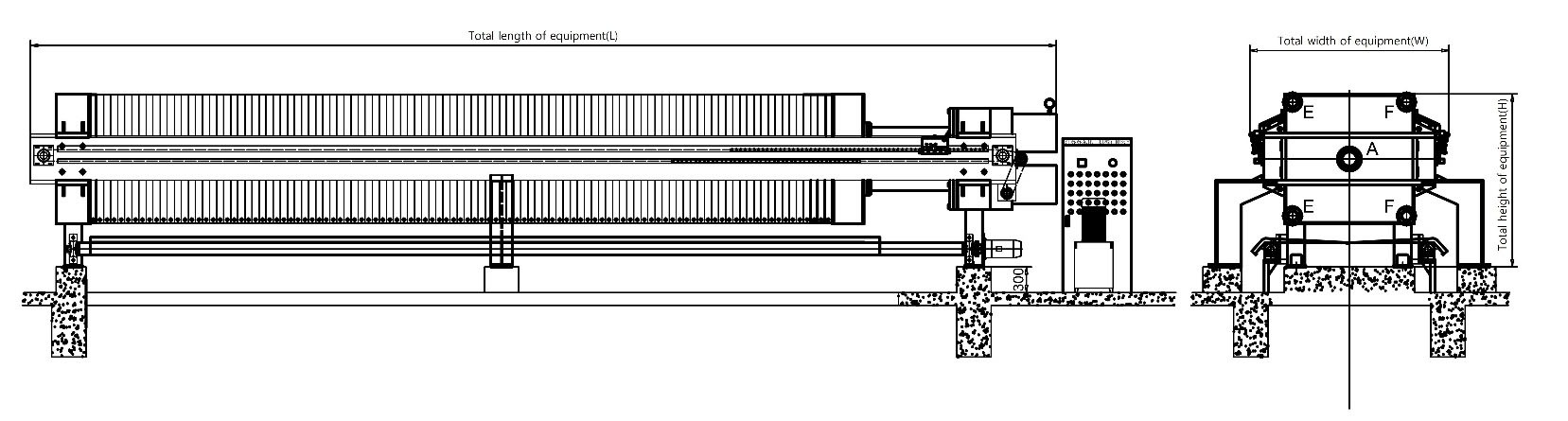

Specification Number of Filter Plate Chamber Volume（m³） Overall Dimensions（mm） Filter Plate Size（mm） Filtration Pressure（MPa） Matching Power（KW） Individual Weight（Kg）
XAMYZ5/600-U 9 0.075 2110×1050×1030 600×600×60 ≤0.8 1.5 1200
XAMYZ10/600-U 18 0.15 2650×1050×1030 600×600×60 1400
XAMYZ12/600-U 22 0.18 2930×1050×1030 600×600×60 1430
XAMYZ15/600-U 27 0.225 3230×1050×1030 600×600×60 1530
XAMYZ20/600-U 36 0.3 4440×1050×1030 600×600×60 1650
XAMYZ25/600-U 45 0.375 4560×1050×1030 600×600×60 1900
XAMYZ30/870-U 23 0.45 3200×1350×1240 870×870×60 4 2850
XAMYZ40/870-U 31 0.6 3700×1350×1240 870×870×60 3200
XAMYZ50/870-U 39 0.75 4200×1350×1240 870×870×60 3550
XAMYZ54/870-U 42 0.81 4380×1350×1240 870×870×60 3680
XAMYZ60/870-U 47 0.9 4700×1350×1240 870×870×60 3900
XAMYZ70/870-U 55 1.05 5200×1350×1240 870×870×60 4250
XAMYZ80/870-U 63 1.2 5700×1350×1240 870×870×60 4600
XAMYZ40/1000-U 23 0.6 3300×1500×1600 1000×1000×60 ≤0.8 4 3970
XAMYZ50/1000-U 29 0.75 4080×1500×1600 1000×1000×60 4350
XAMYZ60/1000-U 35 0.9 4440×1500×1600 1000×1000×60 4600
XAMYZ70/1000-U 41 1.05 4800×1500×1600 1000×1000×60 5080
XAMYZ80/1000-U 47 1.2 5160×1500×1600 1000×1000×60 5400
XAMYZ90/1000-U 53 1.35 5520×1500×1600 1000×1000×60 5700
XAMYZ100/1000-U 59 1.5 5880×1500×1600 1000×1000×60 6000
XAMYZ110/1000-U 65 1.65 6240×1500×1600 1000×1000×60 6350
XAMYZ120/1000-U 71 1.8 6600×1500×1600 1000×1000×60 6700
XAMYZ80/1070-U 40 1.2 4950×1580×1600 1070×1070×60 5300
XAMYZ90/1070-U 45 1.35 5250×1580×1600 1070×1070×60 5610
XAMYZ100/1070-U 50 1.5 5550×1580×1600 1070×1070×60 5890
XAMYZ110/1070-U 55 1.65 5850×1580×1600 1070×1070×60 6200
XAMYZ120/1070-U 60 1.8 6150×1580×1600 1070×1070×60 6420
XAMYZ130/1070-U 65 1.95 6450×1580×1600 1070×1070×60 6690
XAMYZ140/1070-U 70 2.1 6750×1580×1600 1070×1070×60 6960
XAMYZ150/1070-U 75 2.25 7050×1580×1600 1070×1070×60 7200
XAMYZ100/1250-U 37 1.5 5100×1700×1875 1250×1250×65 ≤0.8 5.5 6700
XAMYZ120/1250-U 45 1.8 5620×1700×1875 1250×1250×65 7100
XAMYZ140/1250-U 51 2.1 6010×1700×1875 1250×1250×65 7800
XAMYZ150/1250-U 55 2.25 6300×1700×1875 1250×1250×65 8100
XAMYZ160/1250-U 59 2.4 6550×1700×1875 1250×1250×65 8400
XAMYZ180/1250-U 67 2.7 7070×1700×1875 1250×1250×65 9100
XAMYZ200/1250-U 75 3 7590×1700×1875 1250×1250×65 9650
XAMYZ250/1250-U 93 3.75 8760×1700×1875 1250×1250×65 11100
XAMYZ280/1250-U 103 4.2 9410×1700×1875 1250×1250×65 11800
XAMYZ300/1250-U 111 4.5 9930×1700×1875 1250×1250×65 12500
XAMYZ320/1250-U 119 4.8 10410×1700×1875 1250×1250×65 13100
XAMYZ200/1500-U 51 3 6640×2000×2020 1500×1500×70 ≤0.8 8 14500
XAMYZ220/1500-U 55 3.3 6920×2000×2020 1500×1500×70 15400
XAMYZ250/1500-U 63 3.75 7480×2000×2020 1500×1500×70 16300
XAMYZ280/1500-U 71 4.2 8040×2000×2020 1500×1500×70 17400
XAMYZ300/1500-U 75 4.5 8320×2000×2020 1500×1500×70 18200
XAMYZ320/1500-U 81 4.8 8740×2000×2020 1500×1500×70 19000
XAMYZ340/1500-U 87 5.1 9160×2000×2020 1500×1500×70 19800
XAMYZ400/1500-U 101 6 10140×2000×2020 1500×1500×70 21200
XAMYZ450/1500-U 115 6.75 11120×2000×2020 1500×1500×70 23400
XAMYZ500/1500-U 127 7.5 12260×2000×2020 1500×1500×70 24800
XAMYZ560/1500-U 143 8.4 13080×2000×2020 1500×1500×70 26800
XAMYZ400/2000-U 56 7 8240×2600×2560 2000×2000×80 ≤0.8 8 30200
XAMYZ430/2000-U 60 7.53 8560×2600×2560 2000×2000×80 31200
XAMYZ450/2000-U 64 7.9 8880×2600×2560 2000×2000×80 32200
XAMYZ500/2000-U 71 8.75 9450×2600×2560 2000×2000×80 34100
XAMYZ560/2000-U 79 9.8 10250×2600×2560 2000×2000×80 36180
XAMYZ600/2000-U 85 10.5 10730×2600×2560 2000×2000×80 37800
XAMYZ630/2000-U 89 11.03 10820×2600×2560 2000×2000×80 38900
XAMYZ700/2000-U 99 12.25 11620×2600×2560 2000×2000×80 41500
XAMYZ750/2000-U 107 13.13 12260×2600×2560 2000×2000×80 43580
XAMYZ800/2000-U 115 14 12900×2600×2560 2000×2000×80 45600
XAMYZ900/2000-U 129 15.75 14020×2600×2560 2000×2000×80 49250
XAMYZ1000/2000-U 143 17.5 15140×2600×2560 2000×2000×80 52900

Application

Recommended Products

Keep In Touch

SUBMIT
About Us
Jiangsu Sudong Chemical Machinery Co., Ltd.
Jiangsu Sudong Chemical Machinery Co., Ltd.

As China Automatic Filter press with cloths discharge Manufacturers and Automatic Filter press with cloths discharge Suppliers, Jiangsu Sudong Chemical Machinery Co., Ltd. was founded in June 1956. It is an environmental protection technology-based enterprise integrating filter press technology research and development, a complete set of filtration equipment manufacturing, and environmental protection engineering contracting. It has been engaged in the design and manufacturing of filter presses for more than 30 years. It is a well-known professional enterprise in domestic multi-variety filter press manufacturing. It has been recognized as a high-tech enterprise in Jiangsu Province and one of the top ten competitive enterprises in China's chemical machinery industry. In 2013, it was approved by the Jiangsu Provincial Department of Education and the Jiangsu Provincial Department of Science and Technology as a Jiangsu Provincial Enterprise Graduate Workstation and established the Taizhou Solid-Liquid Separation Equipment Engineering Technology Research Center.

Certificate Of Honor
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
  • Utility model patent certificate
News
Industry knowledge

1. What is an automatic filter press with filter cloth discharge function?


The automatic filter press with filter cloth discharge function is a modern solid-liquid separation equipment designed to improve operating efficiency and reduce manual intervention. This filter press is equipped with an innovative filter cloth bending system that automatically adjusts the angle of the filter cloth during the discharge process to form an inverted "V"-shaped structure. The ingenuity of this design is that it uses gravity and the natural inclination of the filter cloth to promote the automatic shedding of the filter cake. This means that manual intervention is no longer required to clean the filter cloth after the filter cake is formed, thus significantly reducing downtime and significantly improving production efficiency.
During the operation of the filter press, the shedding of the filter cake is usually a time-consuming step that can easily lead to equipment wear. Traditional filter presses often rely on manual operation, which not only increases labor costs, but may also cause equipment damage or filter cloth rupture due to improper operation. The automatic filter press with filter cloth unloading function uses an automated filter cloth adjustment mechanism to ensure that each filter cake falls off smoothly, reducing equipment maintenance needs and extending the service life of the filter cloth. As a leading supplier of Automatic Filter Press With Cloths Discharge, Jiangsu Sudong Chemical Machinery Co., Ltd. provides equipment that is not only one step ahead in functional design, but also meets the industry's high standards in quality and durability.
The application of the filter cloth bending system is not limited to improving discharge efficiency, it can also be adjusted according to the characteristics of different materials to adapt to various complex filtration needs. For example, for high-viscosity materials, the inclination angle and vibration frequency of the filter cloth can be optimized to ensure that the filter cake can be shed smoothly. This flexibility allows our filter presses to adapt to the needs of various industries, making them extremely competitive in the market. By choosing the automatic filter press of Jiangsu Sudong Chemical Machinery Co., Ltd., customers can not only obtain efficient solid-liquid separation solutions, but also enjoy the comprehensive technical support and after-sales service we provide.

2. How does the automatic vibration device improve the working efficiency of the filter press?


The automatic vibration device is one of the core components of the automatic filter press with filter cloth discharge function. It is specially designed to improve the shedding efficiency of filter cake. The device uses pneumatic control technology to cause the filter plate to vibrate up and down through the vibration action during the automatic plate pulling and unloading process. This vibration can not only effectively separate the filter cake from the filter cloth, but also reduce the adhesion between the filter plates, thereby ensuring that the filter cake falls smoothly. When Jiangsu Sudong Chemical Machinery Co., Ltd. designed this device, it paid special attention to its adaptability and reliability in different working environments, so that it can perform well in various complex industrial operations.
The application of automatic vibration devices significantly reduces the need for manual operations. In a traditional filter press, operators usually need to manually operate the filter plate and filter cloth to ensure the complete shedding of the filter cake. However, this method is not only time-consuming, but also prone to damage to the equipment due to improper operation. By introducing an automatic vibration device, Jiangsu Sudong Chemical Machinery Co., Ltd.'s automatic filter press can achieve efficient filter cake shedding without manual intervention, thereby greatly shortening the unloading time and improving overall production efficiency.
The automatic vibration device also has good adaptability. The vibration frequency and amplitude of the device can be adjusted according to the characteristics of different materials to ensure the best discharge effect under different circumstances. For some filter cakes that are difficult to fall off, such as those with high viscosity or fine particles, the vibration device can help the filter cake fall off by enhancing the vibration intensity, thereby avoiding equipment clogging and damage to the filter cloth. The automatic vibration device of Jiangsu Sudong Chemical Machinery Co., Ltd. has been optimized and designed many times to ensure its stability and efficiency in various complex working environments, further improving the overall performance of the filter press.
The automatic vibration device not only improves the working efficiency of the filter press, but also reduces the maintenance requirements of the equipment and the labor intensity of the operators. By choosing Jiangsu Sudong Chemical Machinery Co., Ltd.'s filter press with automatic vibration device, companies can significantly improve production efficiency, reduce operating costs, and obtain higher economic benefits.

3. Why choose an automatic filter press with filter cloth discharge function?


Choosing an automatic filter press with filter cloth unloading function can bring many significant advantages to the enterprise. This equipment greatly reduces reliance on manual operations through advanced automation design. The combination of the filter cloth bending system and the automatic vibration device makes the filter cake shedding process more efficient and does not require manual intervention, thereby reducing the occurrence of operating errors and improving the continuity and stability of production. For those industries that require continuous operation and processing of large amounts of materials, such as chemical industry, pharmaceuticals, food processing, etc., this equipment from Jiangsu Sudong Chemical Machinery Co., Ltd. is undoubtedly an ideal choice.
The automatic filter press with filter cloth discharge function is highly flexible and adaptable. The equipment is designed with the needs of various industrial applications in mind and is capable of handling many types of materials, whether they are highly viscous, fine particles or suspensions containing large amounts of solids. This flexibility allows our equipment to adapt to the requirements of different production lines and provide optimal solid-liquid separation solutions. At the same time, the adjustability of the filter cloth system and vibration device ensures that the equipment can maintain efficient operation under various working conditions.
The economic benefits of this equipment cannot be ignored. Automated operations not only reduce labor costs, but also reduce equipment maintenance needs and downtime. Because the life of the filter cloth and filter plates is extended, the overall operating costs of the equipment are also significantly reduced. Jiangsu Sudong Chemical Machinery Co., Ltd. has integrated the concept of sustainable development into the equipment design to ensure the long service life and efficient operation of the equipment, allowing customers to obtain higher investment returns in long-term use.
